New Generation Optical Fiber Fusion Splicer

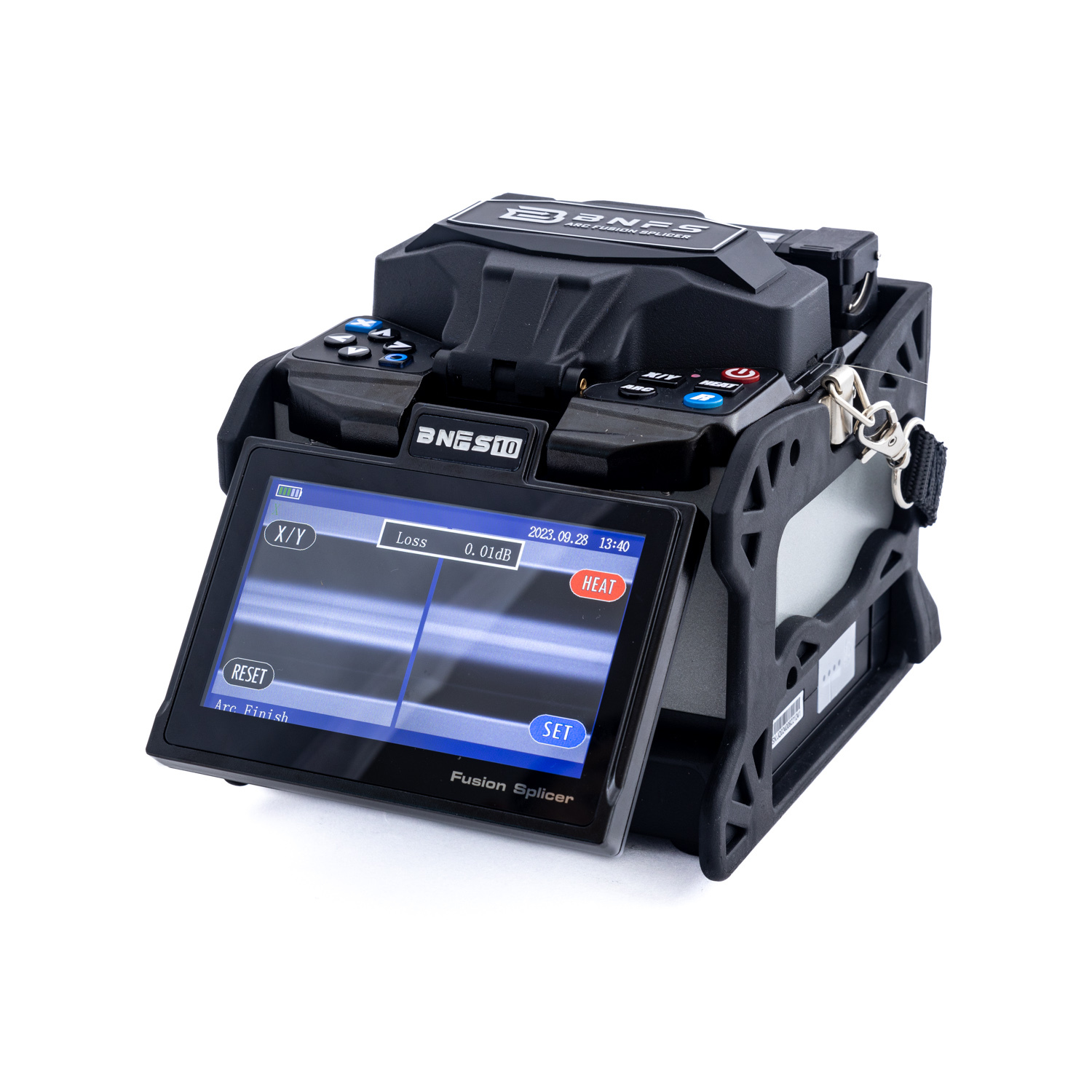

BNFS S10
Intelligent Arc, High Magnification, High Resolution Screen
BNFS series fusion splicer is our latest high-end backbone fusion splicer, 6-motor fiber core alignment, 3-in-1 fixture, 6000mAh large-capacity lithium battery with 200 splices/shrinks per charge.
This fusion splicer adopts Intelligent Arc fusion technology, it can automatically adjust the current and voltage according to the condition of electrodes and the current welding environment, ensuring welding quality and efficiency.
BNFS is also equipped with a high-magnification fiber optic microscope. X or Y axis separate view magnification is 520, X&Y simultaneous view magnification is also 340. It allows you to observe the details of the welding process clearly, improving the welding accuracy and safety.
The screen of this machine is a super-large 5-inch touch screen with a resolution of 800x480, and the display image is clearer and more delicate.
The outer protective rubber has been upgraded from the previous models and is stronger.
Fully ruggedized against shock, dust and moisture.
This fusion splicer is especially suitable for the construction and maintenance of optical fiber communication in telecommunications, radio and television, railways, electric power, military, scientific research institutes, etc., and is very suitable for FTTH installation and maintenance.
BNFS fusion splicer combines advanced technology and humanized design to make your work easier, faster and more perfect.
Specifications：
|
Applicable Fibers |
SM, MM, NZ-DS, EDF ,Pigtail, FTTH drop cable |
|
Average Splice Loss |
0.02dB(SM), 0.01dB(MM), 0.04dB(NZDS), 0.04dB(EDF) |
|
Fiber alignment |
6 motors core alignment |
|
Fiber diameter |
Cladding diameter 80~150µm,coating 100~3000µm |
|
Cleave length |
250µm cladding diameter 8~16mm,over 250µm cladding diameter 16mm |
|
Splicing Program |
81 groups |
|
Splicing time |
Fast 7 sec. , Typical 10 sec. |
|
Heating Program |
10 groups |
|
Heating time |
Typical 20 sec. |
|
Intelligent Arc |
Yes |
|
Auto Fiber Types ldentification |
Yes |
|
Splice image capture |
Max. 800 |
|
Splice data storage |
Max. 10000 |
|
Return Loss |
≥60dB |
|
Tension Test |
2.0N(200gf) (Standard) |
|
Heat-shrinkable Tube |
40mm, 45mm, 60mm |
|
Fiber magnification |
520x for X or Y single axis view, 340x for both X&Y dual axis view |
|
Display Screen |
5.0 inch high-resolution color screen |
|
Port |
High speed USB |
|
Electrode life |
4000 arc discharges |
|
Language |
Chinese, English, French, Russian, Spanish, or customized |
|
Operation Condition |
-10°C～50℃(operation temperature),0～95% RH(humidity), 0～5000m(altitude) |
|
Storage condition |
Humidity: 0~95%, Temperature: -40°C~80°C (Battery -20°C~30°C) |
|
Power Supply |
Input: 100～240V, 50~60Hz; Output: 15V, 5A |
|
Battery |
6000mAh |
|
Dimensions |
130(W)*138.5(H)*135(D)mm |
|
Weight |
1.67kg (without battery) |
